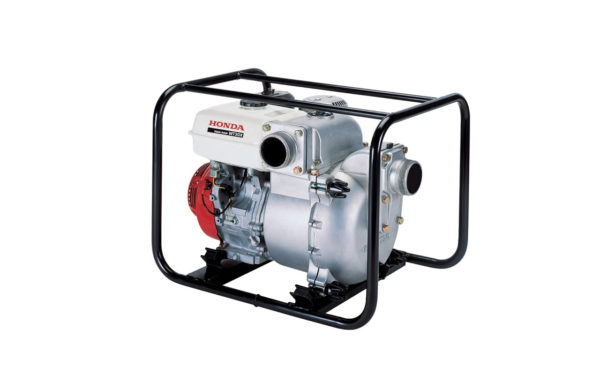

Honda WT30 Water Pump

Specially designed for job sites and applications where high volume trash water capacity is needed.

SKU: DP00566 Category: Tags: , ,

Features

  • Heavy-duty 4″ construction trash pump
  • Easy starting Honda OHV commercial engine
  • 423 gal./min capacity
  • Solid handling capability up to 1 1/16″
  • Cast iron volute and impeller
  • Quick clean out port

Specifications

Engine GX270
Displacement 270 cc
Bore and stroke 3.0″ x 2.3″
Compression Ratio 8.5:1
Oil Alert Std
Pump type Trash Centrifugal Self-priming
Volute Rigid Mounted Cast Iron w/ Stainless Wear Plate
Impeller Conical Cast Iron
Mechanical Seal (Pump case / impeller) Silicon Carbide/Silicon Carbide
Priming time 90 sec. @ 16.4 ft.
Drive system Direct
Discharge capacity 317 gal/min
Suction port diameter 3″
Discharge port diameter 3″
Total head lift 82 ft.
Suction head lift 26 ft.
Maximum pressure 36 psi
Solids handling 1 1/16 inches
Dimensions (LxWxH) 26.0″ x 19.5″ x 20.3″
Dry weight 134 lb.
Fuel Capacity 1.4 gal
Run Time @ Max Discharge 1.5 hr
Strainer Part # 78325-YG1-003
Residential Warranty 3 years
Commercial Warranty 3 years
