Tuff Curb Delineator System

Tuff Curb is a durable, high performance traffic separator curb that is compatible with Impact Recovery’s full line of posts and panels. Integral coloration makes Tuff Curb highly visible and resistant to UV damage and fading. In addition, enhanced profile dimensional properties and 3M reflectors provide maximum visibility and traffic separation both day and night

Clear
SKU: N/A Category:
Downloads

Traffic Safety Supply offers both the standard profile Tuff Curb and the low profile Tuff Curb XLP. Due to the unique design of each installation please specify the following when requesting a quote or placing an order.

Tuff Curb

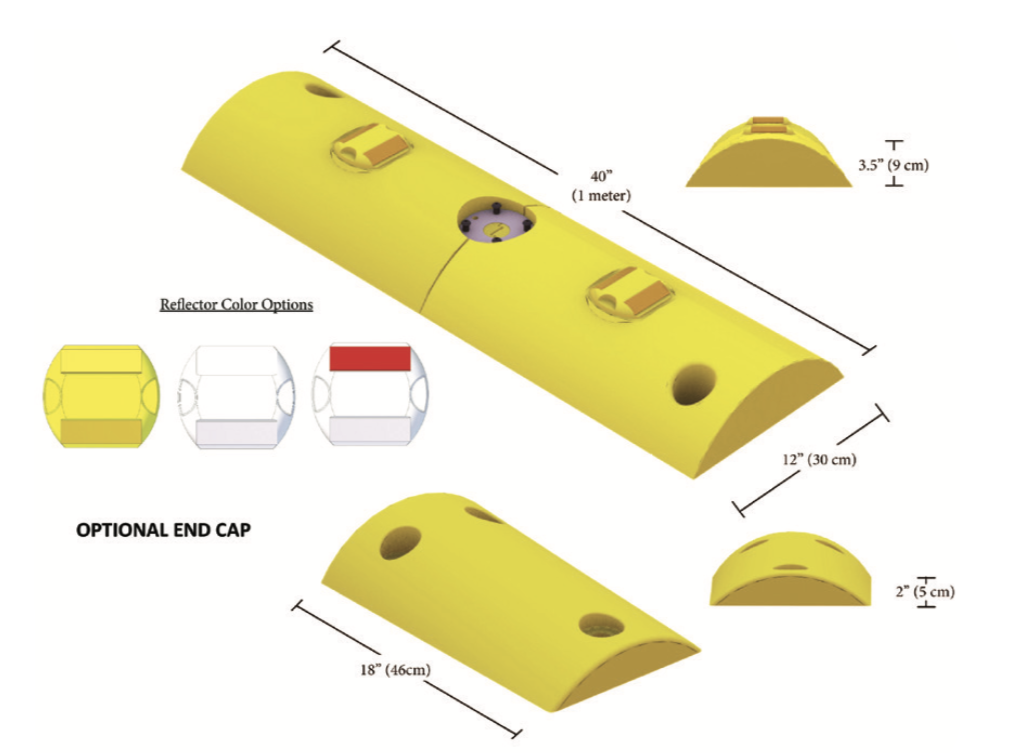

(dimensions: 40”x12”x3.5”, 12 lbs) End Cap (18”x12”x2”, 4 lbs)

  •  How many feet does your project require
  • Curb/end cap color: yellow (yellow reflectors), white (white/white or white/red reflectors)
  • What type of upright post example: delineator, tubular marker, hazard marker etc
  •  Size and color of upright post

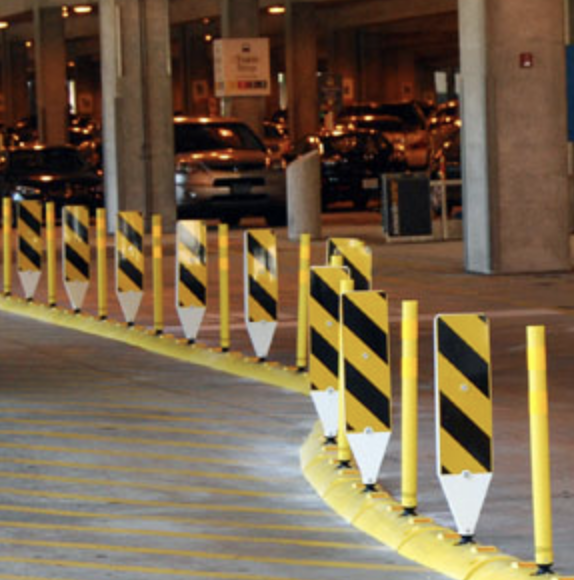

Tuff Curb is ideal for rail crossings (Quiet Zones) to deter motorists from driving around the crossing arms when they are in the down position. Tuff Curb is lightweight and easy to install with only two connection points to the pavement, resulting in reduced labor and installation times. Other recommended uses are curves, medians, edge lines and work zones.

Tuff Curb XLP

(dimensions: 40”x8”x2”, 6.5 lbs)

  • How many feet does your project require
  • Is an optional between curb coupler needed 3) Curb color: yellow (yellow reflectors) or white (white/white or white/red reflectors)
  • What type of upright post example: delineator, tubular marker, hazard marker etc.. (see pages154 and 156) 5) Size and color of upright post

Tuff Curb XLP is a low profile, high performance curbing system designed to withstand damaging high speed, high impact applications. XLP is designed to withstand 20,000 lbs of static pressure, double the federal single axle vehicle maximum for a single wheel. Recommended uses are demanding high speed applications, city streets, bridges and parking decks.

Configuration

Standard 18" Section, Standard 40" Section, XLP Low Profile 40" Section, XLP Low Profile Coupler
